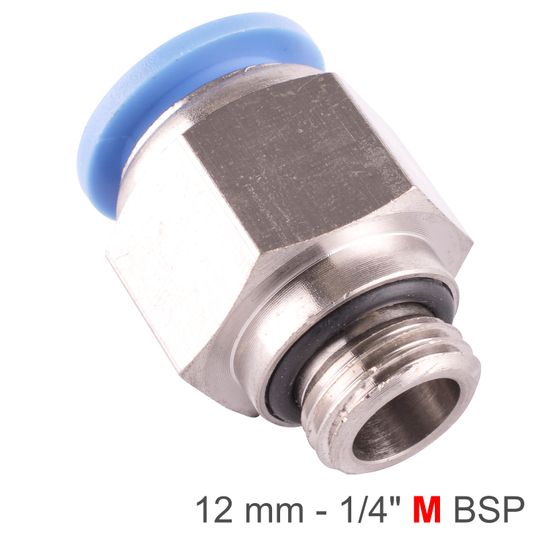

AIRCRAFT Pu Fitting Str. Stud W/o-ring 12mm-1/4\' M

Features

• 12mm push-in tube connection Quick insert-and-lock design for efficient pneumatic installs.
• 1/4" BSP Male (M) threaded stud Fits standard BSP ports commonly found on air system components.
• O-ring sealing design Helps improve sealing at the port interface for dependable performance.
• Straight-through configuration Keeps line routing aligned and neat in compact installations.

Benefits

• Faster installation and servicing: Push-in tube connection saves time during assembly and maintenance.
• Reduced air leaks: O-ring sealing helps cut down pressure loss and wasted compressor cycles.
• Cleaner pneumatic layouts: Straight stud design supports a tidy, professional finish.

Extra Information

• Use with compatible 12mm OD pneumatic tubing (commonly PU or nylon) for best grip and sealing.
• Cut tubing square and insert fully to help the internal seal seat correctly.
• Confirm your port thread is BSP before installation to avoid thread damage or poor sealing.
• To remove tubing: depressurise the line, press the collet in, then pull the tube out gently.

Specifications

Safety

• Wear eye, ear and dust protection when working around compressed air systems and air tools.
• Depressurise the line before installing, removing or adjusting any pneumatic fittings.
• Check for leaks after installation (soapy water works well) and re-seat the tube if needed.
• Do not over-tighten threaded fittings—tighten securely and avoid damaging threads or seals.
