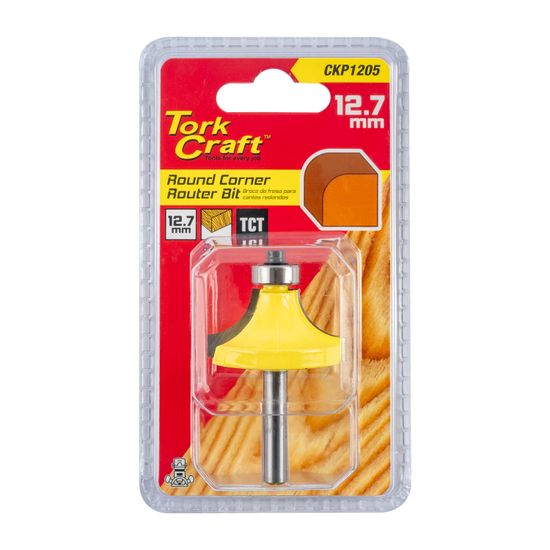

Name: TORK CRAFT Router Bit Corner Round 1/2'
Brand: TORK CRAFT
SKU: CKP1205
Price: 187.00 ZAR
Availability: InStock

TORK CRAFT Router Bit Corner Round 1/2'

NOTE

For walk-in customers, please check availability with the relevant branch.

Based on 0 reviews. - Write a review

R 187.00

Ex VAT: R 162.61

Quantity	Unit Price	You Save
5 or more	R 182.61	2.35 %
10 or more	R 179.88	3.81 %
20 or more	R 177.16	5.26 %

Stock: 2-3 Days
MPN: CKP1205 196161
Weight: 0.11kg
Dimensions: 40.00mm x 48.00mm x 98.00mm
SKU: CKP1205
UPC: 6009675085620

TORK CRAFT

For 30 or more items, click to quote

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Corner Rounding Router Bit

This an affordable router bit range that is well supported throughout South Africa. All our Tork Craft router bits are Tungsten tipped. Tork Craft is a well-known BRAND in most retail stores.

At a glance:

¼" Ø Shank router bit with a 12.7mm (½") radius to profile a roundover shape in wood.

Application:

This router bit is used with a plunge router to profile the edge of wood to produce a rounded edge that has a 12,7mm radius

Definition: The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over, and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Please ensure that you select a router bit with a shank (shaft) size that will fit your router. If are in doubt, contact us and we will confirm if it will work for you.

Features

Corner round profile Designed to round over sharp edges for a smoother and more decorative finish.
Tungsten carbide cutting edge Helps deliver clean, accurate cuts in suitable woodworking materials.
HSS body and shank Strong body and shank construction for dependable router bit performance.
1/2 inch bearing Allows controlled edge-following when routing along a workpiece edge.
Larger profile size Suitable for projects where a more visible and comfortable rounded edge is required.

Benefits

Improves appearance: Creates a smooth rounded edge that gives woodworking projects a more complete and professional look.
Softens sharp corners: Helps remove harsh edges from boards, shelves, frames, tabletops and cabinet parts.
Consistent results: The bearing helps guide the bit for a more even profile along the edge.
Comfortable edge finish: A rounded edge feels better to handle and can improve the final feel of the project.
Great finishing bit: A useful router accessory for carpentry, furniture making, trim work and DIY woodworking.

Application

Rounding over timber edges.
Decorative edge profiling on woodworking projects.
Furniture, shelving, tabletop and cabinet finishing.
Frame, trim and moulding work.
DIY, carpentry, craft and woodworking projects.
Use with router machines only.

Extra Information

The CKP1205 is a corner round router bit with a 1/4 inch shank.
The listed radius for this bit is 7/16 inch.
Use only in a compatible router collet and with a router machine.
Ensure that at least 3/4 of the shank length is inserted into the router collet.
Do not bottom-out the bit in the collet. Leave approximately 1/8 inch clearance from the bottom of the collet.
When removing larger amounts of stock, route in two or more passes for better control and finish.
For outside edges, feed the router anti-clockwise. For inside edges or frames, feed clockwise when using a portable router.
Suggested maximum router speed for a 1.5 inch diameter bit is typically reduced compared with smaller bits. Always follow the router manufacturer’s speed guidance.

Pro Tips

Test the profile on a scrap piece of the same material before routing the final workpiece.
Use shallow passes rather than removing too much material in one cut, especially with larger round-over profiles.
Keep the router base flat and steady against the workpiece to avoid uneven edges.
Make sure the bearing is clean and spins freely before use.
Use a router table and fence whenever possible for better control and repeatable results.

How to Use

Make sure the router is switched off and unplugged before fitting the bit.
Insert at least 3/4 of the shank length into the router collet, leaving about 1/8 inch clearance from the bottom.
Tighten the collet securely according to the router manufacturer’s instructions.
Set the cutting depth to achieve the required corner round profile.
Secure the workpiece firmly before routing.
Start the router and allow it to reach full speed before contacting the workpiece.
Feed the router steadily in the correct direction and avoid forcing the bit.
Switch off the router and wait for the bit to stop completely before removing it from the workpiece.

Shank dia. (d)	Radius (R)
6,35 mm (1/4 inch)	12,7mm (1/2 inch)

Explaining the Specifications:

(d) -> The diameter of the shank or shaft. This size should be the same as the collet size of your router. Example: a small router is mostly supplied with a quarter inch collet that is 6,35 mm inside diameter.
Common collet sizes:
- 1/4' collet = 6,35mm inside diameter
- 8mm collet = 8mm inside diameter
- 12mm collet = 12mm inside diameter
- 1/2' collet = 12,7mm inside diameter
- NOTE that the 12mm and the 12,7mm (1/2') sizing are often misunderstood. 1/4 inch is not 6mm but exactly 6,35mm. A 6mm shank will not fit in a 1/4 in collet. Wrong sizes will either break the collet or the bit will fall out.
TCT = Tungsten Carbide Tipped
Allways stay in the MAX Speed range of router bit

Please ensure that you select a router bit with a shank (shaft) size that will fit your router. If are in doubt, contact us and we will confirm if it will work for you.

consider safety for your health and the people around you
General safety suggestions: It is advisable to always follow Safety Guides and keep all equipment in a good condition. Never use blunt cutters and blades. These will simply overheat and disintegrate causing harm to people nearby. Eye protection – clean and scratch free Hearing protection – quality earmuffs Dust masks – discard old and dirty masks Switch machines OFF before leaving the workplace. Unplug machines before changing cutters.

Switch OFF	Eye Protection	Hearing Protection	Dust Mask
