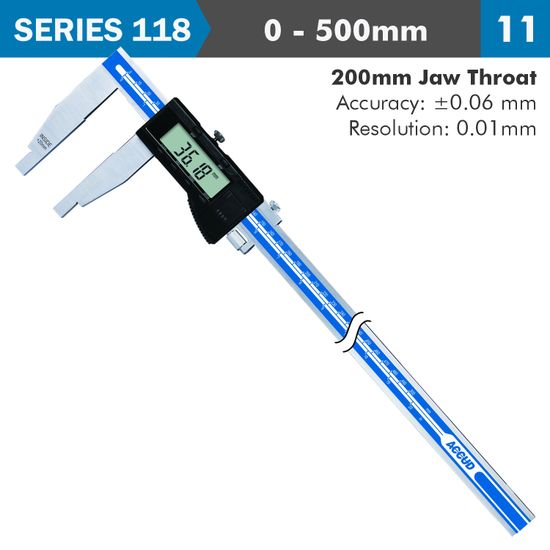

ACCUD Dig. Caliper 500mm 0.06mm Acc. S/stell 0.01mm Res.
R 11,573.00
Ex VAT: R 10,063.48
- Stock: 1
- MPN: AC118-020-13
- Weight: 4.38kg
- Dimensions: 358.00mm x 126.00mm x 126.00mm
- SKU: AC118-020-13
- UPC: 6009515858872
For 3 or more items, click to quote
Long Jaw Digital Caliper
600 mm SERIES 118-11
600 mm SERIES 118-11
Manufacturer Cat No: 118-020-13
Range: 0 mm - 500 mm
Resolution: 0,01 mm or 0.0005 in
Accuracy: ±0,05 mm
Electronic Caliper with extended jaws
Professional quality workshop electronic unidirectional caliper with measuring range of 0 - 600 mm | 24' (in) and measuring resolution 0,01mm / 0.0005'. A USB data output slot makes measurement recording possible to a computer. Data cable code 100-15.
When using the caliper for inside measurements, add 20mm as engraved on the jaw end. See measurement explaind as 'w' in the specifications tab.
Made of stainless steel.
Features at a glance
- Resolution: 0.01mm / 0.0005'
- Buttons: on/off, zero, mm/inch, ABS, data preset
- Data output (cable code:100-15)
- 100 mm jaw length
- Made of stainless steel
Technical parameters:
| Description | Spec |
| Measurement range: | 0-500mm / 24 ' |
| The length of the jaws h: | 100 mm |
| Resolution: | 0.01 mm | 0.0005 ' |
| Accuracy: | ± 0.05 mm |
| Jaw marking: | for internal measurements add 20mm |
| Dimension a: | 12 mm |
| Dimension c: | 24 mm |
| Dimension w: | 20 mm |
| ABS function | YES |
| Button Off / On: | YES |
| ZERO button: | YES |
| mm / inch switch: | YES |
| Data output socket: | YES |
| Lock type: | screw |
| Construction: | stainless steel |
