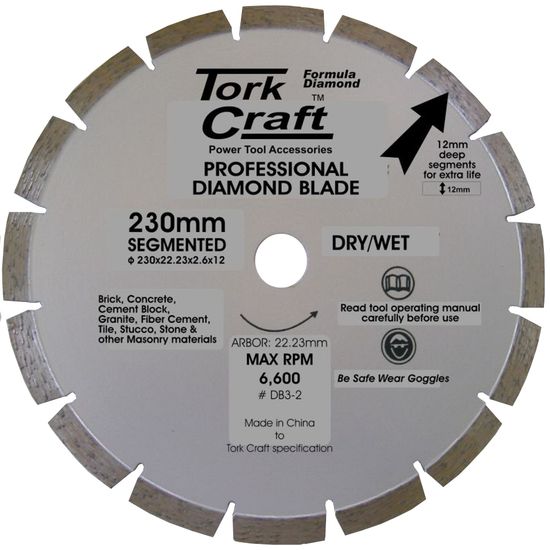

TORK CRAFT Diamond Blade Segmented 230mm For Granite 12mm Deep Segments

TORK CRAFT Diamond Blade Segmented 230mm For Granite 12mm Deep Segments
TORK CRAFT Diamond Blade Segmented 230mm For Granite 12mm Deep Segments
TORK CRAFT Diamond Blade Segmented 230mm For Granite 12mm Deep Segments
TORK CRAFT Diamond Blade Segmented 230mm For Granite 12mm Deep Segments
TORK CRAFT Diamond Blade Segmented 230mm For Granite 12mm Deep Segments
R 312.00
Ex VAT: R 271.30
Quantity Unit Price You Save
5 or more R 304.38 2.44 %
10 or more R 295.29 5.35 %
20 or more R 288.48 7.54 %
  • Stock: 123
  • MPN: DB3-2
  • Weight: 0.66kg
  • Dimensions: 254.00mm x 270.00mm x 4.00mm
  • SKU: DB3-2
  • UPC: 6009515817602
For 20 or more items, click to quote
DIAMOND BLADE SEGMENTED 230MM FOR GRANITE 12MM DEEP SEGMENTS

Write a review

Bad Good

Features

  • Segment depth: 12 mm — deeper segments for longer life on hard stone.
  • 230 mm diameter with standard **22.23 mm arbor** — fits many 9″ stone cutters and angle grinders.
  • Granite/mm-grade bond formulated for hard stone cutting.
  • Segmented rim with gullets to help cooling and chip clearance.
  • Wet or dry compatible — wet cutting preferred to preserve the blade and reduce dust.

Benefits

  • Extended life: deeper segments resist wear in hard stone on longer jobs.
  • Powerful cuts: aggressive segment design penetrates tough granite surfaces.
  • Cleaner cuts: optimized bond and grit for reduced chipping on brittle stone surfaces.

Extra Information

  • Best for granite, dense stone, engineered stone, decorative stone elements.
  • Use wet cutting where possible — keeps blade cool, clears slurry and extends life.
  • Check that blade’s max RPM rating matches or exceeds your tool’s rating (typical for 230 mm is ≤ 6 600 rpm).
  • Avoid side loading; guide cuts straight and support the material fully near the kerf.

Pro Tip

  • Begin with a shallow guide groove before full plunge — helps reduce segmentation stress and keeps the blade centered.
  • On long cuts, retract occasionally to allow water to flush and cool the segments — helps prevent glazing and loading.

Specifications

Description Spec
BrandTork Craft
Model / Cat No.DB3-2
Blade TypeDiamond segmented blade (stone / masonry)
Diameter230 mm
Segment Depth12 mm
Arbor / Bore22.23 mm (7/8″)
Cut TypeGranite, hard stone, engineered stone
Use ModeWet preferred; dry possible with cooling breaks

Safety

  • Wear eye, face, hearing and dust/mist protection; use water to suppress dust.
  • Ensure guards, splash shields, water feed lines are active.
  • Mount correctly with arrow direction matching tool rotation; avoid side loading.
  • Never exceed blade’s max RPM; inspect for cracked, chipped or warped segments before each use.
