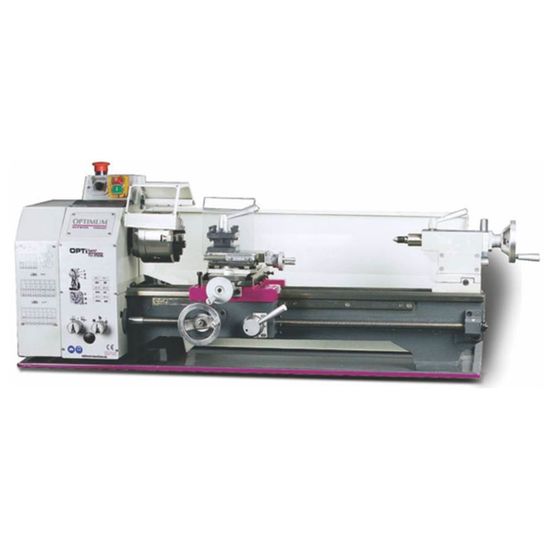

OPTIMUM / Lathe Opti D240x500 Industrial Quality Micro-Tec / BL3425001

OPTIMUM / Lathe Opti D240x500 Industrial Quality Micro-Tec / BL3425001
OPTIMUM / Lathe Opti D240x500 Industrial Quality Micro-Tec / BL3425001
R 42,895.00
Ex VAT: R 37,300.00
  • Stock: 1
  • Model: BL3425001
  • Weight: 156.00kg
  • Dimensions: 1,200.00mm x 560.00mm x 580.00mm
  • SKU: BL3425001
For 10 or more items, click to quote

OPTIMUM / Lathe Opti D240x500 Industrial Quality Micro-Tec / BL3425001

  • Lead screw lathes with feed gear for demanding users
  • Precise manufacturing
  • Powerful, maintenance free motor
  • Heavily ribbed prism bed made of grey cast iron, inductively hardened and precision ground
  • Hardened and ground bed guideways
  • Guaranteed true running accuracy of the spindle nose better than 0.009 mm
  • True running accuracy of the lathe chuck better than 0.04 mm
  • Automatic longitudinal/leading spindle drive
  • With leading spindle for threading or automatic longitudinal turning
  • Right-/left-handed rotation switchable on
  • Leading spindle run on two porous bearings
  • Handwheels on the slide with adjustable precision scaling of 0.04/0.01 mm
  • Change gear kit for thread cutting
  • Thrust bearing
  • Emergency-stop push button
  • Fully equipped machine, the user can immediately start to work productively

Connection  230 V / 1 Ph ~50 Hz
Driving motor spindle  750 W
Spindle taper  MT 4
Spindle hole
Spindle seat  Short taper
Quadruple tool holder Height  max. 13 mm
Centre height  125 mm
Centre width  550 mm
Turning Ø over lathe bed  250 mm
Bed width  135 mm
Spindle speed  125 – 2,000 min-1
Number of steps  6 steps
Travel top slide  70 mm
Travel cross slide  110 mm
Longitudinal feed in the range of  0.07 – 0.4 mm/U
Pitch – Metric in the range of  0.2 – 4 mm mm/U
Pitch – Inch in the range of  56 – 8 Gg/1
Tailstock seat  MT 2
Tailstock – sleeve travel  65 mm
Dimensions (L x W x H)  1,250 x 585 x 475 mm

Net weight  125 kg
